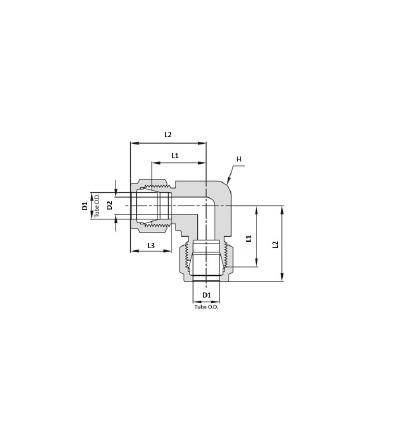

UNION ELBOW
Catalogue|
METRIC |
||||||
|
Product ID |
D1 |
D2 |
H |
L1 |
L2 |
L3 |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
UE_3 |
3 |
2.4 |
9.5 |
15.7 |
22.3 |
12.9 |
|
UE_4 |
4 |
2.4 |
12.7 |
18.8 |
25.4 |
13.7 |
|
UE_6 |
6 |
4.8 |
12.7 |
19.6 |
27.0 |
15.3 |
|
UE_8 |
8 |
6.4 |
14.3 |
21.3 |
28.8 |
16.2 |
|
UE_10 |
10 |
7.9 |
17.5 |
23.9 |
31.5 |
17.2 |
|
UE_12 |
12 |
9.5 |
20.6 |
25.9 |
36.0 |
22.8 |
|
UE_14 |
14 |
11.1 |
23.8 |
27.9 |
38.0 |
24.4 |
|
UE_15 |
15 |
11.9 |
23.8 |
27.9 |
38.0 |
24.4 |
|
UE_16 |
16 |
12.7 |
23.8 |
27.9 |
38.0 |
24.4 |
|
UE_18 |
18 |
15.1 |
27.0 |
29.7 |
39.8 |
24.4 |
|
UE_20 |
20 |
15.9 |
34.9 |
34.5 |
44.6 |
26.0 |
|
UE_22 |
22 |
18.3 |
34.9 |
34.5 |
44.6 |
26.0 |
|
UE_25 |
25 |
21.8 |
34.9 |
36.8 |
49.1 |
31.3 |
|
IMPERIAL |
||||||
|
Product ID |
D1 |
D2 |
H |
L1 |
L2 |
L3 |
|
inch |
inch |
inch |
inch |
inch |
inch |
|
|
UE_1/16 |
1/16 |
.05 |
3/8 |
.55 |
.70 |
.34 |
|
UE_1/8 |
1/8 |
.09 |
3/8 |
.62 |
.88 |
.50 |
|
UE_3/16 |
3/16 |
.12 |
1/2 |
.74 |
1.00 |
.54 |
|
UE_1/4 |
1/4 |
.19 |
1/2 |
.77 |
1.06 |
.60 |
|
UE_5/16 |
5/16 |
.25 |
9/16 |
.84 |
1.13 |
.64 |
|
UE_3/8 |
3/8 |
.28 |
5/8 |
.91 |
1.20 |
.66 |
|
UE_1/2 |
1/2 |
.41 |
13/16 |
1.02 |
1.42 |
.90 |
|
UE_5/8 |
5/8 |
.50 |
15/16 |
1.10 |
1.50 |
.96 |
|
UE_3/4 |
3/4 |
.62 |
1 1/16 |
1.17 |
1.57 |
.96 |
|
UE_7/8 |
7/8 |
.72 |
1 3/8 |
1.36 |
1.76 |
1.02 |
|
UE_1 |
1 |
.88 |
1 3/8 |
1.45 |
1.93 |
1.23 |
|
UE_1 1/4 |
1 1/4 |
1.09 |
1 11/16 |
1.75 |
2.62 |
1.62 |
|
UE_1 1/2 |
1 1/2 |
1.34 |
2 |
2.00 |
3.07 |
1.97 |
|
UE_2 |
2 |
1.81 |
2 3/4 |
2.75 |
4.22 |
2.66 |
