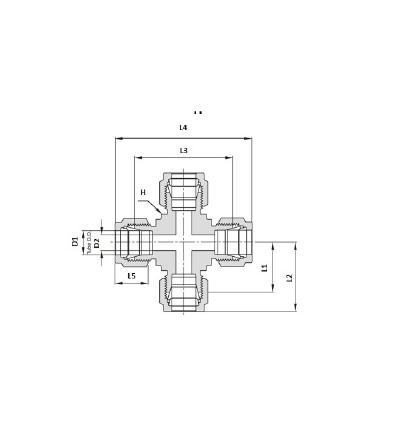

UNION CROSS
Catalogue|
METRIC |
||||||||
|
Product ID |
D1 |
D2 |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
UC_3 |
3 |
2.4 |
9.5 |
15.7 |
22.3 |
31.5 |
44.7 |
12.9 |
|
UC_6 |
6 |
4.8 |
12.7 |
19.6 |
27.0 |
39.1 |
53.9 |
15.3 |
|
UC_8 |
8 |
6.4 |
15.9 |
22.4 |
29.9 |
44.7 |
59.7 |
16.2 |
|
UC_10 |
10 |
7.9 |
20.6 |
25.9 |
33.5 |
51.8 |
67.0 |
17.2 |
|
UC_12 |
12 |
9.5 |
20.6 |
25.9 |
36.0 |
51.8 |
72.0 |
22.8 |
|
UC_16 |
16 |
12.7 |
23.8 |
26.9 |
37.0 |
53.8 |
74.0 |
24.4 |
|
UC_18 |
18 |
15.1 |
27.0 |
28.2 |
38.3 |
56.4 |
76.6 |
24.4 |
|
UC_20 |
20 |
15.9 |
34.9 |
34.5 |
44.6 |
69.0 |
89.3 |
26.0 |
|
UC_22 |
22 |
18.3 |
34.9 |
34.6 |
44.7 |
69.1 |
89.4 |
26.0 |
|
UC_25 |
25 |
21.8 |
34.9 |
36.8 |
49.1 |
73.7 |
98.3 |
31.3 |
|
IMPERIAL |
||||||||
|
Product ID |
D1 |
D2 |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
|
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
|
|
UC_1/8 |
1/8 |
.09 |
3/8 |
.62 |
.88 |
1.24 |
1.76 |
.50 |
|
UC_1/4 |
1/4 |
.19 |
1/2 |
.77 |
1.06 |
1.54 |
2.12 |
.60 |
|
UC_5/16 |
5/16 |
.25 |
5/8 |
.88 |
1.17 |
1.76 |
2.34 |
.64 |
|
UC_3/8 |
3/8 |
.28 |
5/8 |
.91 |
1.20 |
1.82 |
2.40 |
.66 |
|
UC_1/2 |
1/2 |
.41 |
13/16 |
1.02 |
1.42 |
2.04 |
2.84 |
.90 |
|
UC_3/4 |
3/4 |
.62 |
1 1/16 |
1.17 |
1.57 |
2.34 |
3.14 |
.96 |
|
UC_1 |
1 |
.88 |
1 3/8 |
1.45 |
1.93 |
2.90 |
3.86 |
1.23 |
