Compression Fittings

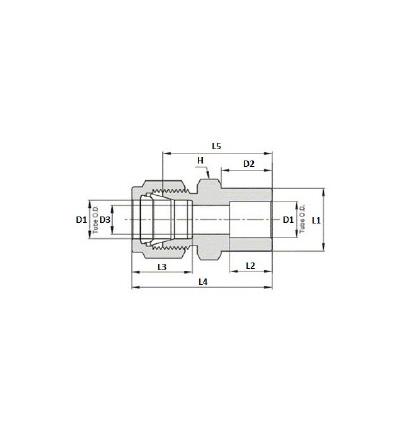

TUBE SOCKET WELD UNION

IMPERIAL

Product ID

D1

D2

D3

H

L1

L2

L3

L4

L5

inch

inch

inch

inch

inch

inch

inch

inch

inch

TSWU_1/8 x 1/8

1/8

.34

.09

7/16

.31

.25

.50

1.14

.88

TSWU_1/4 x 1/4

1/4

.41

.19

1/2

.44

.31

.60

1.32

1.03

TSWU_3/8 x 3/8

3/8

.47

.28

5/8

.62

.38

.66

1.48

1.19

TSWU_1/2 x 1/2

1/2

.47

.41

13/16

.75

.50

.90

1.62

1.22

TSWU_3/4 x 3/4

3/4

.47

.62

1 1/16

1.05

.56

.96

1.71

1.31

TSWU_1 x 1

1

.56

.88

1 3/8

1.36

.75

1.23

2.07

1.59
