Compression Fittings

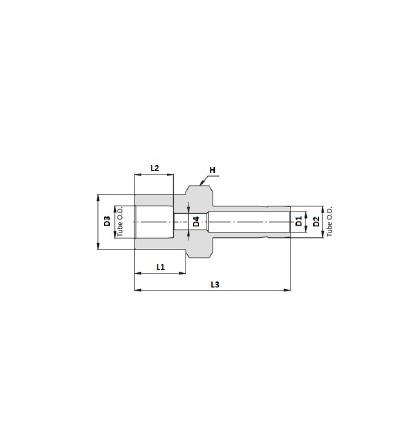

SOCKET WELD ADAPTER
Catalogue|
METRIC TO IMPERIAL |
||||||||
|
Product ID |
D1 |
D2 |
D3 |
D4 |
H |
L1 |
L2 |
L3 |
|
mm |
inch |
mm |
mm |
inch |
mm |
mm |
mm |
|
|
SWA_6 x 1/4 |
6 |
1/4 |
10.4 |
4.0 |
1/2 |
11.2 |
7.9 |
31.7 |
|
SWA_10 x 1/4 |
10 |
1/4 |
10.4 |
4.8 |
9/16 |
11.2 |
7.9 |
34.0 |
|
SWA_10 x 3/8 |
10 |
3/8 |
11.9 |
7.1 |
5/8 |
15.8 |
9.7 |
36.0 |
|
IMPERIAL TO IMPERIAL |
||||||||
|
Product ID |
D1 |
D2 |
D3 |
D4 |
H |
L1 |
L2 |
L3 |
|
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
|
|
SWA_1/4 x 1/4 |
1/4 |
1/4 |
.41 |
.17 |
1/2 |
.44 |
.31 |
1.25 |
|
SWA_3/8 x 3/8 |
3/8 |
3/8 |
.47 |
.28 |
5/8 |
.62 |
.38 |
1.42 |
|
SWA_1/2 x 1/2 |
1/2 |
1/2 |
.47 |
.39 |
13/16 |
.75 |
.50 |
1.67 |
