Compression Fittings

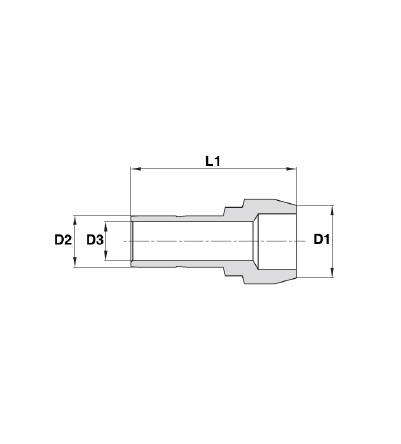

REDUCING PORT CONNECTOR
Catalogue|
METRIC TO METRIC |
||||
|
Product ID |
D1 |
D2 |
D3 |
L |
|
mm |
mm |
mm |
mm |
|
|
RPC_6 x 3 |
6 |
3 |
2.1 |
22.9 |
|
RPC_8 x 6 |
8 |
6 |
4.0 |
24.7 |
|
RPC_10 x 6 |
10 |
6 |
4.0 |
25.8 |
|
RPC_10 x 8 |
10 |
8 |
5.6 |
26.1 |
|
RPC_12 x 6 |
12 |
6 |
4.0 |
29.1 |
|
RPC_12 x 8 |
12 |
8 |
5.6 |
29.8 |
|
RPC_12 x 10 |
12 |
10 |
7.1 |
30.6 |
|
RPC_16 x 12 |
16 |
12 |
8.8 |
37.5 |
|
RPC_28 x 25 |
28 |
25 |
|
|
|
RPC_32 x 25 |
32 |
25 |
|
|
|
RPC_38 x 25 |
38 |
25 |
19.8 |
65.8 |
|
IMPERIAL TO IMPERIAL |
||||
|
Product ID |
D1 |
D2 |
D3 |
L |
|
inch |
inch |
inch |
inch |
|
|
RPC_1/8 x 1/16 |
1/8 |
1/16 |
.03 |
.68 |
|
RPC_1/4 x 1/16 |
1/4 |
1/16 |
.03 |
.71 |
|
RPC_1/4 x 1/8 |
1/4 |
1/8 |
.08 |
.90 |
|
RPC_3/8 x 1/8 |
3/8 |
1/8 |
.08 |
.91 |
|
RPC_3/8 x 1/4 |
3/8 |
1/4 |
.17 |
.98 |
|
RPC_1/2 x 1/4 |
1/2 |
1/4 |
.17 |
1.15 |
|
RPC_1/2 x 3/8 |
1/2 |
3/8 |
.28 |
1.20 |
|
RPC_3/4 x 1/2 |
3/4 |
1/2 |
.39 |
1.49 |
|
RPC_1 x 1/2 |
1 |
1/2 |
|
|
|
RPC_1 x 3/4 |
1 |
3/4 |
|
|
