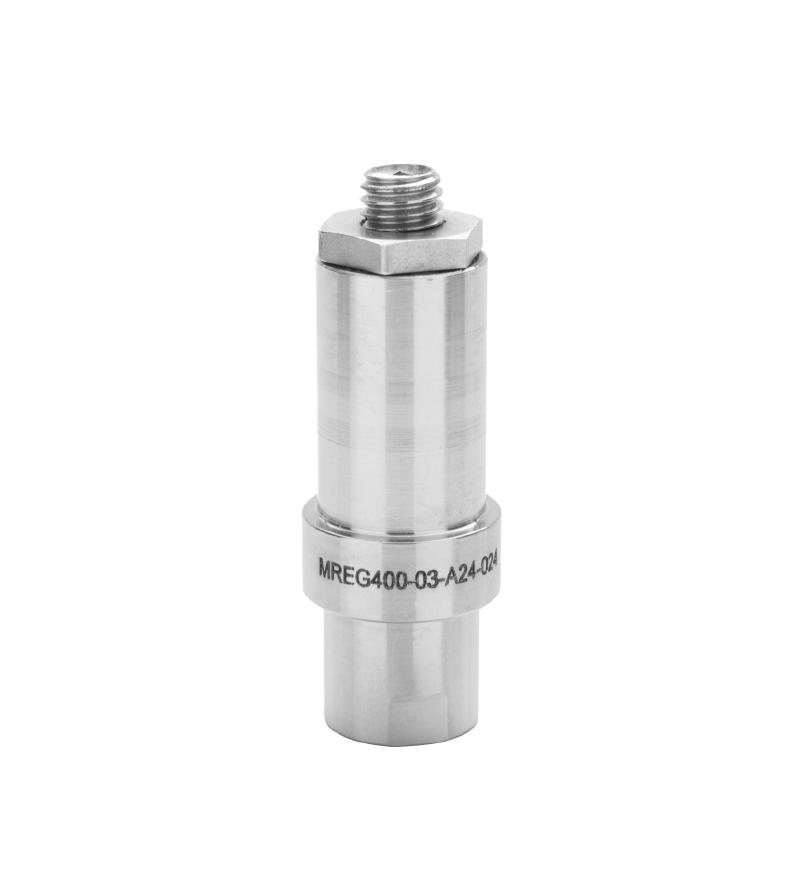

MSReg

Our smallest and easist to use regulator with factory-set outlet pressure.

CHARACTERISTICS

  • Robust and Leaktight Design
  • Lightweight and Compact
  • Easy to Use with Set Pressure
  • 316SS Body Structure
  • Almost Zero Dead Volume
  • DEF/STAN 58-96/4 Compliant
  • High Resistance to Overpressure
  • Design Temperature: -45°C/+71°C
  • Working Temperature: -40°C / +63°C
  • Max Inlet Pressure: Up to 550 bar
  • Flow Capacity: Up to 100 NL/min
  • Max Weight: 75.0 g

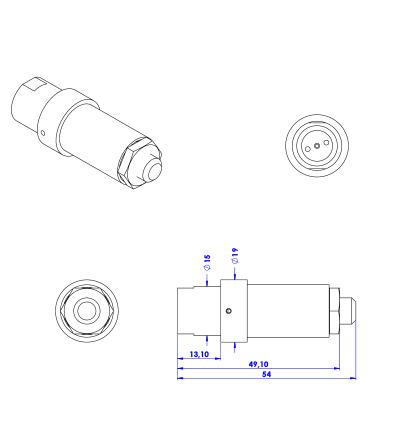

  • Max Size: 54 x 19 x 19 mm
  • Seat Material: PEEK
  • Back Up Rings: PTFE

Component

Material

Knob Handle

Polyamide

Spring

316SS

Stem

316SS

Seat

PEEK

Filter

316SS

Poppet

316SS

Body

316SS

Piston

316SS
