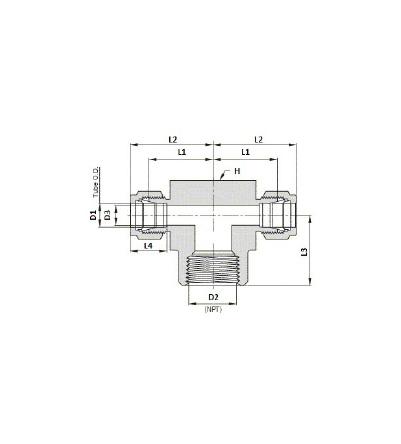

FEMALE BRANCH TEE
Catalogue|
METRIC TO NPT |
||||||||
|
Product ID |
D1 |
D2 (NPT) |
D3 |
H |
L1 |
L2 |
L3 |
L4 |
|
mm |
inch |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
FBT_6 x NPT-1/8 |
6 |
1/8 |
4.8 |
15.9 |
19.6 |
27.0 |
19.0 |
15.3 |
|
FBT_6 x NPT-1/4 |
6 |
1/4 |
4.8 |
20.6 |
22.4 |
29.8 |
22.4 |
15.3 |
|
FBT_8 x NPT-1/8 |
8 |
1/8 |
6.4 |
15.9 |
22.4 |
29.9 |
19.0 |
16.2 |
|
FBT_8 x NPT-1/4 |
8 |
1/4 |
6.4 |
20.6 |
23.1 |
30.6 |
22.4 |
16.2 |
|
FBT_10 x NPT-1/4 |
10 |
1/4 |
7.9 |
20.6 |
25.9 |
33.5 |
22.4 |
17.2 |
|
FBT_10 x NPT-3/8 |
10 |
3/8 |
7.9 |
23.8 |
25.9 |
33.5 |
22.4 |
17.2 |
|
FBT_12 x NPT-1/4 |
12 |
1/4 |
9.5 |
20.6 |
25.9 |
36.0 |
22.4 |
22.8 |
|
FBT_12 x NPT-3/8 |
12 |
3/8 |
9.5 |
23.8 |
25.9 |
36.0 |
22.4 |
22.8 |
|
FBT_12 x NPT-1/2 |
12 |
1/2 |
9.5 |
27.0 |
28.7 |
38.8 |
28.4 |
22.8 |
|
FBT_16 x NPT-1/2 |
16 |
1/2 |
12.7 |
27.0 |
28.7 |
38.8 |
28.4 |
24.4 |
|
IMPERIAL TO NPT |
||||||||
|
Product ID |
D1 |
D2 (NPT) |
D3 |
H |
L1 |
L2 |
L3 |
L4 |
|
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
|
|
FBT_1/8 x NPT-1/8 |
1/8 |
1/8 |
.09 |
5/8 |
.70 |
.97 |
.75 |
.50 |
|
FBT_1/4 x NPT-1/8 |
1/4 |
1/8 |
.19 |
5/8 |
.77 |
1.06 |
.75 |
.60 |
|
FBT_1/4 x NPT-1/4 |
1/4 |
1/4 |
.19 |
13/16 |
.88 |
1.17 |
.88 |
.60 |
|
FBT_3/8 x NPT-1/4 |
3/8 |
1/4 |
.28 |
13/16 |
.94 |
1.23 |
.88 |
.66 |
|
FBT_3/8 x NPT-3/8 |
3/8 |
3/8 |
.28 |
15/16 |
1.02 |
1.31 |
.88 |
.66 |
|
FBT_3/8 x NPT-1/2 |
3/8 |
1/2 |
.28 |
1 1/16 |
1.13 |
1.42 |
1.12 |
.66 |
|
FBT_1/2 x NPT-1/4 |
1/2 |
1/4 |
.41 |
13/16 |
1.02 |
1.42 |
.88 |
.90 |
|
FBT_1/2 x NPT-3/8 |
1/2 |
3/8 |
.41 |
15/16 |
1.02 |
1.42 |
.88 |
.90 |
|
FBT_1/2 x NPT-1/2 |
1/2 |
1/2 |
.41 |
1 1/16 |
1.13 |
1.53 |
1.12 |
.90 |
|
FBT_5/8 x NPT-1/2 |
5/8 |
1/2 |
.50 |
1 1/16 |
1.13 |
1.53 |
1.12 |
.96 |
|
FBT_3/4 x NPT-3/4 |
3/4 |
3/4 |
.62 |
1 3/8 |
1.36 |
1.76 |
1.25 |
.96 |
|
FBT_1 x NPT-3/4 |
1 |
3/4 |
.88 |
1 3/8 |
1.45 |
1.93 |
1.25 |
1.23 |
|
FBT_1 x NPT-1 |
1 |
1 |
.88 |
1 11/16 |
1.63 |
2.11 |
1.50 |
1.23 |
