Pressure Reducing Regulators
CPReg
Re-Lok’s robust regulator to use with any type of gas cylinders.
CHARACTERISTICS
- Robust and Leaktight Design
- 316SS Body Structure
- 6 Pressure Range Options
- 5 Gauge Port Options
- Self-Venting Option
- Various Cylinder Connections
- Selectable Handle Color Options
- Different Outlet Connection Adaptors
- Low Dead Volume
- DEF/STAN 58-96/4 Compliant
- High Resistance to Overpressure
Catalogue- Design Temperature: -45°C/+71°C
- Working Temperature: -40°C / +63°C
- Max Inlet Pressure: Up to 550 bar
- Flow Capacity: 400 NL/min
- Max Weight: 2,750.0 g

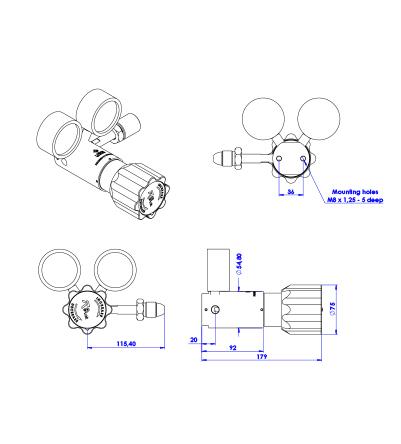

- Max Size: 180 x 75 x 75 mm
- Seat Material: PEEK
- Back Up Rings: PTFE
|
Component |
Material |
|
Knob Handle |
Polyamide |
|
Spring |
316SS |
|
Stem |
316SS |
|
Seat |
PEEK |
|
Filter |
316SS |
|
Poppet |
316SS |
|
Body |
316SS |
|
Piston |
316SS |
