Compression Fittings
BULKHEAD REDUCER
Catalogue|
IMPERIAL TO NPT |
||||||||||||
|

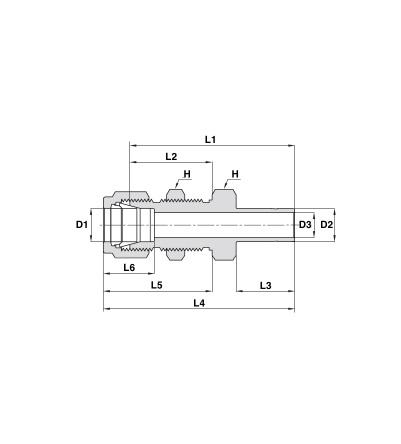

Product ID |
D1 |
D2 |
D3 |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
Panel Hole Drill Size |
Max. Panel Width |
|
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
|
|
BR_1/8 x 1/8 |
1/8 |
1/8 |
.08 |
1/2 |
1.69 |
.97 |
.53 |
1.95 |
1.23 |
.50 |
21/64 |
.50 |
|
BR_1/4 x 1/4 |
1/4 |
1/4 |
.17 |
5/8 |
1.91 |
1.03 |
.62 |
2.20 |
1.32 |
.60 |
29/64 |
.40 |
|
BR_3/8 x 3/8 |
3/8 |
3/8 |
.28 |
3/4 |
2.12 |
1.16 |
.69 |
2.41 |
1.45 |
.66 |
37/64 |
.44 |
|
BR_1/2 x 1/2 |
1/2 |
1/2 |
.39 |
15/16 |
2.47 |
1.25 |
.91 |
2.87 |
1.65 |
.90 |
49/64 |
.50 |
|
BR_5/8 x 5/8 |
5/8 |
5/8 |
.50 |
1 1/16 |
2.56 |
1.28 |
.97 |
2.96 |
1.68 |
.96 |
57/64 |
.50 |
|
BR_3/4 x 3/4 |
3/4 |
3/4 |
.59 |
1 3/16 |
2.81 |
1.47 |
.97 |
3.21 |
1.87 |
.96 |
1 1/64 |
.66 |
|
BR_1 x 1 |
1 |
1 |
.80 |
1 5/8 |
3.47 |
1.78 |
1.30 |
3.95 |
2.26 |
1.23 |
1 21/64 |
.75 |
