BPReg

Our one and only Back Pressure Regulator with sensitive pressure control.

CHARACTERISTICS

  • Robust and Leaktight Design
  • Lightweight and Compact
  • 316SS Body Structure
  • 8 Gauge Port Options
  • Selectable Handle Color Options
  • Different Outlet Connection Adaptors
  • Low Dead Volume
  • DEF/STAN 58-96/4 Compliant
  • High Resistance to Overpressure
  • Design Temperature: -45°C/+71°C
  • Working Temperature: -40°C / +63°C
  • Max Inlet Pressure: Up to 250 bar
  • Flow Capacity: 200 NL/min
  • Max Weight: 1,230.0 g

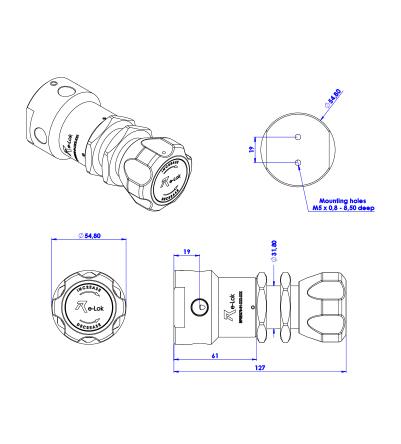

  • Max Size: 127 x 55 x 55 mm
  • Seat Material: PEEK
  • Back Up Rings: PTFE

Component

Material

Knob Handle

Polyamide

Spring

316SS

Stem

316SS

Seat

PEEK

Filter

316SS

Poppet

316SS

Body

316SS

Piston

316SS
